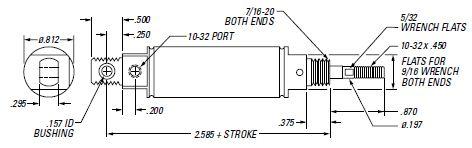

Part #: E16X–.–U
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

RESET SPRING FORCE FOR SINGLE ACTING UNITS ( lbs.)

Part #: E16X–.–N
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Front stud mount

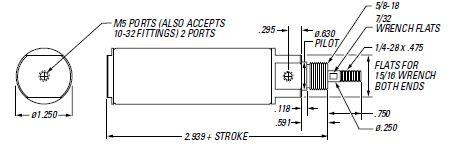

Part #: E24X–.–U
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

RESET SPRING FORCE FOR SINGLE ACTING UNITS ( lbs.)

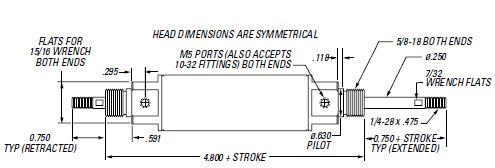

Part #: E24X–.–N
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Front stud mount

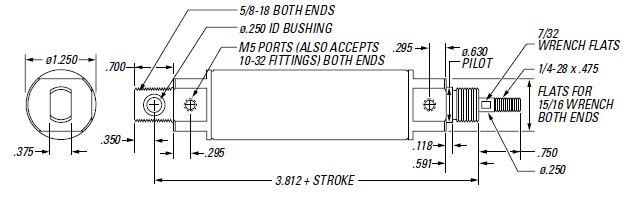

Part #: E24D–.–U
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

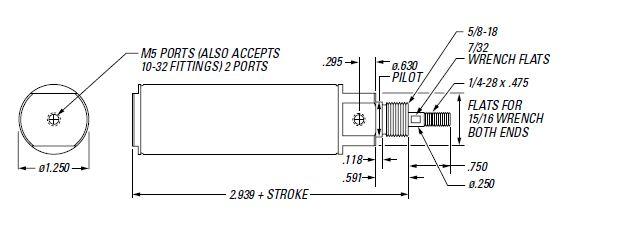

 Part #: E24D–.–N
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Front stud mount

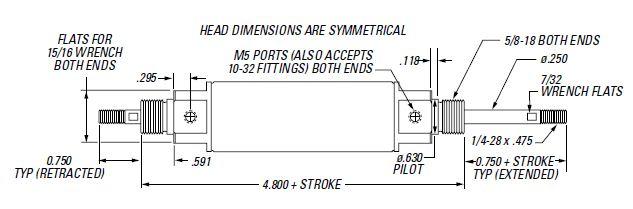

Part #: E24D–.–D
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0
Double rod end

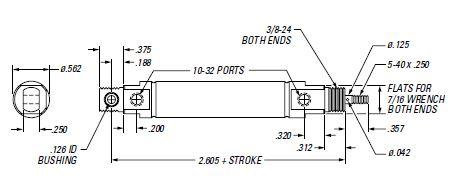

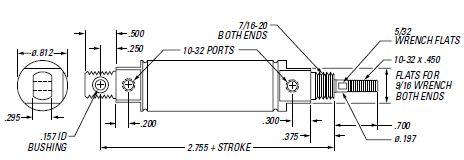

Part #: E9D–.–U
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

Part #: E9D–.–N
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Front stud mount

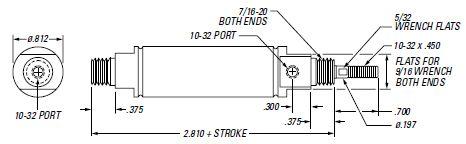

Part #: E9D–.–S
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Front, rear stud mount

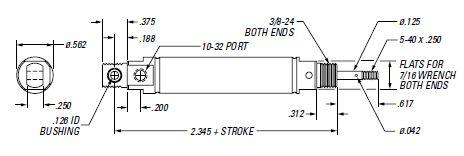

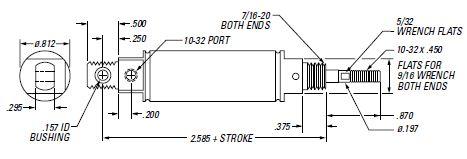

Part #: E9D–.–D
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Double rod end
