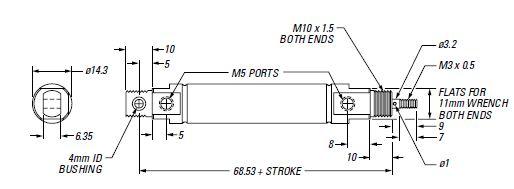

Part #: M9D–.–U
STROKE
Strokes:
12.5–25.0–37.5–50.0–75.0–
100.0–125.0–150.0–175.0–
200.0–225.0–250.0–275.0–300.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

Part #: M9D–.–N
STROKE
Strokes:
12.5–25.0–37.5–50.0–75.0–
100.0–125.0–150.0–175.0–
200.0–225.0–250.0–275.0–300.0
Front stud mount

Part #: M9D–.–S
STROKE
Strokes:
12.5–25.0–37.5–50.0–75.0–
100.0–125.0–150.0–175.0–
200.0–225.0–250.0–275.0–300.0
Front, rear stud mount

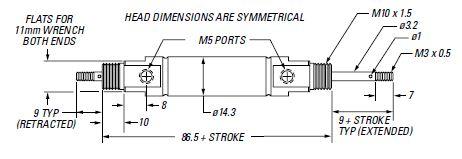

Part #: M9D–.–D
STROKE
Strokes:
12.5–25.0–37.5–50.0–75.0–
100.0–125.0–150.0–175.0–
200.0–225.0–250.0–275.0–300.0
Double rod end
