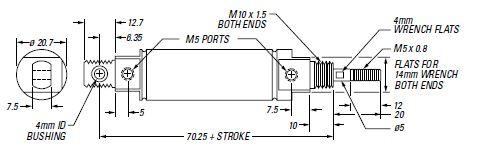

Part #: M16XD–.–U
STROKE
Air extend, spring return
Strokes: 12.5–25.0–37.5–50.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

RESET SPRING FORCE FOR SINGLE ACTING UNITS ( lbs.)

Part #: M9XD–.–NSTROKEAir extend, spring returnStrokes: 12.5–25.0–37.5Front stud mount

Part #: M24XD–.–U
STROKE
Air extend, spring return
Strokes: 12.5–25.0–37.5–50.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

RESET SPRING FORCE FOR SINGLE ACTING UNITS ( lbs.)

Part #: M9XD–.–NSTROKEAir extend, spring returnStrokes: 12.5–25.0–37.5Front stud mount

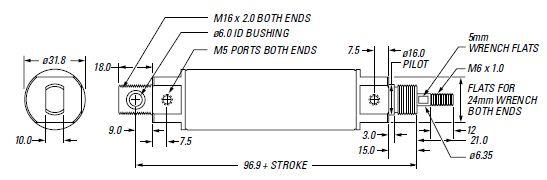

Part #: M24D–.–U
STROKE
Strokes:
12.5–25.0–37.5–50.0–75.0–
100.0–125.0–150.0–175.0–
200.0–225.0–250.0–275.0–300.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

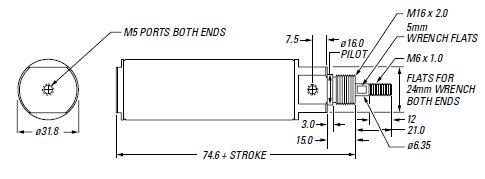

Part #: M24D–.–N
STROKE
Strokes:
12.5–25.0–37.5–50.0–75.0–
100.0–125.0–150.0–175.0–
200.0–225.0–250.0–275.0–300.0
Front stud mount

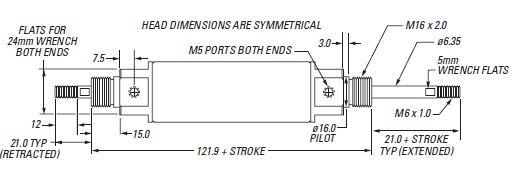

Part #: M24D–.–D
STROKE
Strokes:
12.5–25.0–37.5–50.0–75.0–
100.0–125.0–150.0–175.0–
200.0–225.0–250.0–275.0
Double rod end

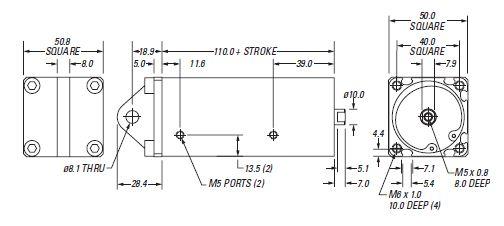

Part #: M32D–.–U
STROKE
Strokes:
12.5–25.0–50.0–75.0–100.0
Rear pivot mount

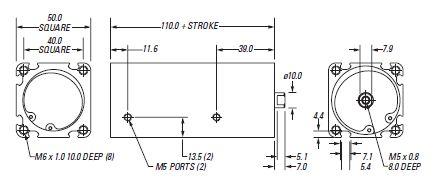

Part #: M32D–.–N
STROKE
Strokes:
12.5–25.0–50.0–75.0–100.0
Front/rear mount
